Micrometer for external measurements with reduced contact surfaces. Suitable for measuring splined shafts or small surfaces. Frame in steel. Serial number. Manufactured as per DIN 863. Supplied in case. Complete with...
For Special Applications
Micrometer for measurement of threads. Suitable for checking threads using the ISO 60º metric. Inserts ø 5. From the code 02 complete with setting of 60º.

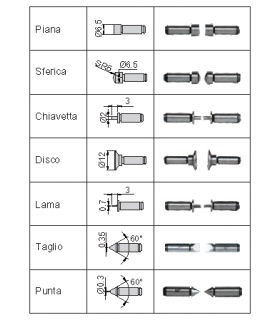

Universal mechanical micrometer complete with 7 interchangeable inserts. Digital version with reading 0,001mm upon requirement. Supplied in case.

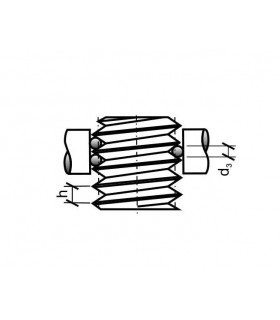

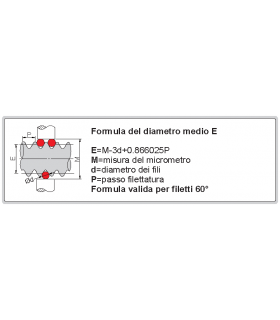

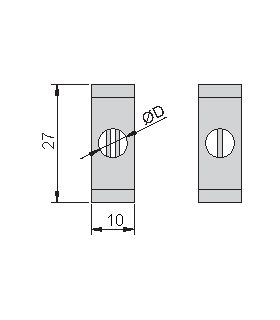

Wire holders with calibrated wires for measuring threads using the 3 wires method. Suitable for all micrometers with inserts Ø 6,5 mm.
Micrometer for checking side-mills. Cylindrical contact surface in carbide. Complete with setting key and setting gauge. Frame in steel. Serial number. Manufactured as per DIN 863. Supplied in case.
High quality/accuracy outside micrometer with discs. Casting painted arc heat-insulated. Thimble ( ø 19 mm x step 0,5 – ø 25 mm x step 1) chromed and etched by laser for a clear and long lasting. Friction on the...
Disc model micrometer for gears. Frame in steel. Lapped contact surfaces. Suitable for checking the play in gear flanks and the thickness of involute profile teeth from 0,5-4,5 mm. Hardened and ground screw. Serial...

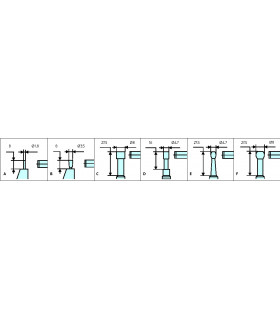

Micrometer for tubes. Specially designed for measuring the thickness of convex parts and tube walls. Body in steel. Serial number. Manufactured as per DIN 863. Supplied in case. Versions A/B/C/D/F upon equirement.
Micrometer for measuring wire diameters. Hardened and ground body in satin-chromed steel. Serial number. Manufactured as per DIN 863. Supplied in case.
