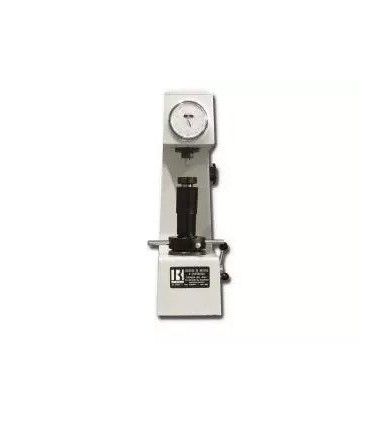

ROCKWELL HARDNESS TESTER 645
Traditional Rockwell hardness gauge for tests on small and medium-sized pieces. Direct readout on dial indicator. Test loads can be selected using the rotating handle and precision index. Provides Rockwell and Brinell tests and Vickers impressions. Operates on the traditional Rockwell method with direct readout on the dial indicator. Brinell hardnesses are obtained using the simplification tables. The sturdy holder ensures precise measurement. Entirely chromed and ground. The rubber boot protection guarantees constant and secure movement without requiring maintenance. Designed for maximum, long-lasting reliability and precision results. It has passed exceedingly strict performance tests.
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
ART.0645
Love0
Add to compare0
|
ITEM
|
645.01
|
|
Mean load
|
10 Kgf (98) N
|
|
Test load
|
60-100-150 Rockwell (588-980-1471) N
|
|
Operation
|
Traditional Rockwell
|
|
Possible tests
|
Rockwell HRCA-D-B-F-G-L-M-R
|
|
Direct readout
|
Rockwell
|
|
Useful aperture
|
215 mm
|
|
Useful aperture
|
190 mm
|
|
Column diameter
|
60 mm
|
|
Anvil size
|
60 mm
|
|
Supportable weight
|
1000 Kg.
|
|
Applications:
|
For all metals: iron, steel, hardened steel, cast iron, bronze, aluminium, metal alloy, plastic, rigid and soft materials.
Thickness greater than 0,6 mm.
|
|
Standard accessories:
|
1 HRC diamond point,
1 1/16” HRB round point,
1 HRC test specimen,
1 HRB test specimen,
2 “V” shaped anvils,
2 flat anvils,
Dust cover
|
|
Weight
|
Kg. 85
|
|
ITEM
|
645.02
|
|
Mean load
|
10 Kgf (98) N
|
|
Test loads
|
60-100-150 Rockwell (588-980-1471) N
|
|
Operation
|
Traditional Rockwell
|
|
Possible tests
|
Rockwell HRCA-D-B-F-G-L-M-R Brinell HB 30; HB 10; HB 5
|
|
Direct readout
|
Rockwell + Brinell
|
|
Useful aperture
|
215 mm
|
|
Useful depth
|
190 mm
|
|
Column diameter
|
60 mm
|
|
Anvil size
|
60 mm
|
|
Supportable weight
|
1000 Kg.
|
|
Application:
|
For all metals: iron, steel, hardened steel, cast iron, bronze, aluminium, metal alloy, plastic, rigid and soft materials.
Thickness greater than 0,6 mm.
|
|
Standard accessories:
|
1 HRC diamone point,
1 1/16” HRB round point,
1 2,5 mm round carbide ball,
1 HRC test specimen,
1 HRB test specimen,
1 HB test specimen,
1 microscope 10x,
2 “V” snaped anvils,
2 falt anvils,
Dust cover
|
|
Weight Kg.
|
85
|
