VERTICAL PROFILE PROJECTOR
Bench model with vertical optics, multifunctions display with geometric calculation
Episcopic and diascopic light: 24V 150W
Turn screeen with real diameter: 306 mm
Table dimensions: 340 x...

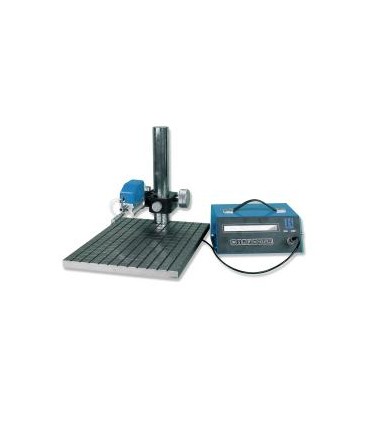

ART.1000 - DIGITAL ROUGHNESS TESTER
Portable RUG 1000 digital roughness tester. Easy to use and suitable for both the workshop and metrology room. Compact and in strong, shockproof casing. The standard probe is suitable for use on flat surfaces and internal/external diameters. A range of special probes is available on request for difficult circumstances. The probe works on the principle of differential induction using a cone-shaped diamond with radius of 3 μm. Large alphanumeric display and soft keyboard. Function for centring the diamond on the material to be tested. Information is given on correct use, low-energy battery and off-scale.
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
ART.1000
Love0
Add to compare0
Automatic switch-off after approximately 2 minutes with data storage. Mm/inch conversion. Parameter selection and traverse cut-off. RS232 output to 40 column printer for hard copy of data and preselected parameters.
Parameters as per ISO 4287 rule:
Ra, Rq, Rz, Rt, Rp, Rv, Rc, RSm, RPc, Pt, Wt, Rδc, Pδc, Rk, Rpk, Rvk, Mr1, Mr2.
Parameters as per DIN rule:
Ra, Rq, Rz, Rt, Rmax, Rp, Rv, RSm, RPc, PrDIN, PtISO, Wt, R3z, R3zm, Rδc/Pδc, Rk, Rpk, Rvk, Mr1, Mr2.
Parameters as per ISO 12085 rule:
Pt, R, AR, Rx, Wte, W, AW, Wx, PPc, Pδc.
Resolution: 0,01 μm.
Repeatibility: +/- 1 digit.
Precision: +/- 5%.
Traverse cut-off: 0,25 – 0,8 – 2,5 mm.
Measurement speed: 1 mm/sec.
Operating temp. range: +10°C / +40°C.
Supplied in case with probe unit, driver unit, shoulder strap and roughness test specimen.
|
CODE
|
DESCRIPTION
|
|
01
|
240 x 95 x 140 RUG 1000
|
|
02
|
40 Column Printer
|
|
03
|
400 x 300 Stand
|
7 other products in the same category:
Digital hardness tester with incorporated printer. Suitable for hardness measurements from 30 to 650 HB / from 80 to 940 HV / from 200 to 900 LD / from 20 to 68 HRC / from 20 to 100 HRB / from 32,5 to 99,5 HSD / from...
Portable Brinell percussion hardness gauge.Suitable for checking large pieces of cast metal, pieces in production, sheet metal, etc..It checks values between 35 and 220 kg/mm².Body in steel with galvanic...
Small portable digital roughness tester. Easy to use and suitable for the workshop. Suggested for horizontal and vertical measurements, with probe at 90°, on surface plate, outside and inside diameters assembled on...
Instrument used to measure the pitch of naval propellers.
Rubber hardness gauge. This SHORE hardness gauge is used for measuring the hardness of types of rubber, elastomers and plastic and similar materials. It is available in two versions, A and D: version A is normally...
Traditional Rockwell hardness gauge for tests on small and medium-sized pieces. Direct readout on dial indicator. Test loads can be selected using the rotating handle and precision index. Provides Rockwell and Brinell...
