ACCESSORIES FOR METRIC DIAL TEST INDICATORS

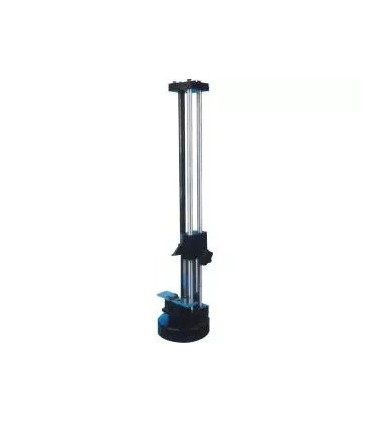

ART.0295 - BORE GAUGE SETTING INSTRUMENT
Bore gauge setting instrument.
This instrument offers you the best way to accuracy zero-set your bore gauges and internal micrometers at two contacts.
Gauge blocks are used o set the exact reference value.
Measuring range 18-400 mm.
The setting instrument consists of a stand with double guidance and flat measuring jaw, a couple of hardened steel contacts and one support for bore gauges.
