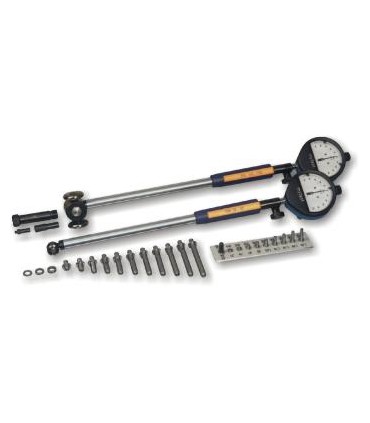

ART.0275 - DUE TO ITS UNIVERSAL AND RUGGED CONSTRUCTION, THE RABITO IS SUITED FOR THE USE IN THE PRECISION ROOM
Due to its universal and rugged construction, the rabito is suited for the use in the precision room, in the product as well as in the incoming and final inspection.
Single work pieces as well as series products can be checked efficiently.
The handling is easy and requires no special skill.
When oscillating the measuring instrument in the direction of the measuring axis, the point with the minimum value is automatically passed throught, which can be seen on the direction change of the pointer on the dial.
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
ART.0275
Love0
Add to compare0
Mechanical and digital dial gauges (idealy with min/max storage) and electronic probes with clamping ø 8 h6 can be used. The well proven repair and spare parts service is also ensured. Instruments holder with steel measuring pins and increment washers in wooden box, without indicating unit, without master setting rings.
|
CODE
APPLICATION RANGE D
FROM
TO
|
01
(mm)
18
35
|
02
(mm)
35
60
|
03
(mm)
50
150
|
|
TRAVEL S
|
1,3
|
1,4
|
1,4
|
|
MEAS. DEPTH MT
|
176
|
178
|
178
|
|
TOTAL LENGHT L
|
284
|
286
|
286
|
|
TUBE-ø R
|
12
|
12
|
12
|
|
FRONT DISTANCE h
|
7,25
|
10,5
|
13
|
|
CENTRING WIDTH ZB
|
14,5
|
28
|
43
|
|
No. OF MEAS. PINS
|
9
|
6
|
11
|
|
No. OF INCREMENT WASHERS
|
2
|
3
|
3
|
