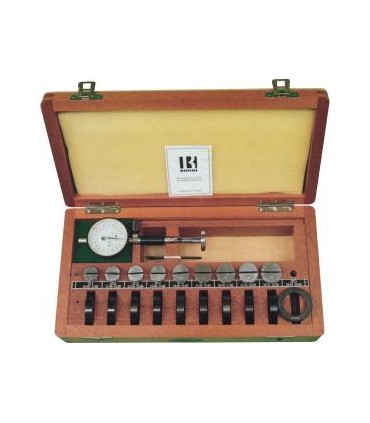

BORE GAUGE WITH CONVEX CONTACT SURFACES 269
Comparators suitable for checking cylindrical bores to determine their diameter and errors of shape.
The standard tracer points are fitted with convex surfaces in hardened chrome to facilitate insertion into the bore.
Any grooves or recesses in the bore will not hamper measurement.
Axial centering is achieved by moving te bore gauge from side to side.
Supplied in case with setting rings but without dial indicator.
Extension can be mounted to increase the depth.
Manufactured as per DIN 878.
