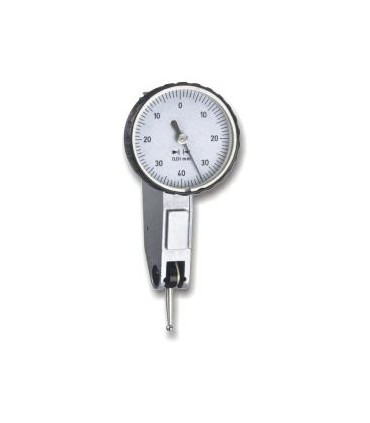

ART.0315 - TEST INDICATOR
Test indicator.
Ruby-mounted gear movements give maximum precision but the test indicator is also shockproof.
Automatic inversion of the direction of measurement without a switch to anticlockwise direction of the indicator.
Supplied with three guides for attachment to comparator holders for greater versatility.
Complete with ø 2 ball probe tip and ø 8 connector.
Manufactured as per DIN 2270 from A.
Supplied in case.
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
ART.0315
Love0
Add to compare0
|
CODE
|
READING
(mm)
|
RANGE
(mm)
|
DIAL
READING
(mm)
|
EXTERNAL
Ø
(mm)
|
LENGHT OF PROBE
(mm)
|
|
01
|
0,01
|
0,8
|
0-40-0
|
32
|
12
|
|
02
|
0,01
|
0,8
|
0-40-0
|
40
|
12
|
|
03
|
0,002
|
0,2
|
0-100-0
|
32
|
12
|
|
04
|
0,002
|
0,2
|
0-100-0
|
40
|
12
|
|
05
|
0,01
|
0,5
|
0-25-0
|
32
|
35
|
|
06
|
0,01
|
0,5
|
0-25-0
|
40
|
35
|
|
07
|
0,001
|
0,2
|
0-100-0
|
40
|
12
|
