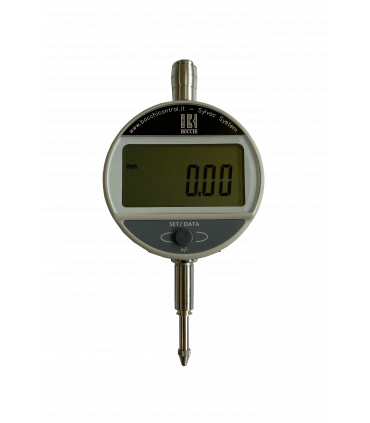

ART.4306 - DIGITAL DIAL INDICATOR
High quality digital indicators. Sylvac digital electronic components with output OPTO RS232 (enable the direct connection to PC).
“0” setting function – mm/inch conversion – hold (memory) – REF I/REF II – PRESET –Change of measuring direction +/-.
Standard dial diameter of 60 mm, round of 270°, measuring probe in hardened and ground stainless steel, interchangeable contact point M2,5 thread.
Clamping rod ø 8 h6 in stainless steel.
The version with reading 0,001 mm is supplied along with the Sylvac certificate, the “mini” version has the fix dial with diameter of 42 mm with protection IP65 (water resistant).
The sign “P” means a total protection.
The sign “A” is for the led tolerance indication min/max.
The sign “V” is for the vertical type.
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
ART.4306
Brand:
Love0
Add to compare0
“Standard” electronics dial of ø 60 mm, rotating 270°, measuring stem in hardened and ground stainless steel, interchangeable measuring button with M2.5 thread.
Fixing stem ø 8 h6 in stainless steel.
The version with 0.001 mm reading is supplied with Sylvac certificate, the "mini" version has a fixed, non-rotating ø 42 mm electronics dial and IP65 protection (water resistant) and analogue display.
- The abbreviation “P” indicates total protection.
- The abbreviation “A” indicates Min./Max. LED signalling.
- The abbreviation “V” indicates vertical version.
- The abbreviation “S” indicates version without Preset.
|
CODE
|
MODEL
|
 |
READING
(mm)
|
RANGE
(mm)
|
MAX. ERROR
(µm)
|
REPEATABILITY’
(µm)
|
WEIGHT
(kg)
|
|
01
|
BASIC |
0,01
|
12,5 | 10 |
2
|
0,190
|
|
|
02
|
BASIC |
0,001
|
12,5
|
4 |
2
|
0,190
|
|
|
03
|
ADVANCED |
0,01
|
12,5
|
10 |
2
|
0,120
|
|
|
04
|
ADVANCED |
0,001
|
12,5 | 3 |
2
|
0,130
|
|
|
05
|
ADVANCED |
0,01
|
25
|
10 |
2
|
0,230
|
|
|
06
|
ADVANCED
|
0,001
|
25
|
4 |
2
|
0,230
|
|
|
07
|
ADVANCED |
0,01
|
50
|
20 |
2
|
||
|
08
|
ADVANCED |
0,001
|
50
|
5 |
2
|
||
|
09
|
ADVANCED |
0,01
|
100
|
20 |
2
|
||
|
10
|
ADVANCED |
0,001
|
100
|
6 |
2
|
||
|
11
|
ADVANCED |
0,01
|
150
|
20 |
2
|
||
|
12
|
ADVANCED |
0,001
|
150
|
10 |
2
|
||
|
13
|
SMART |  |
0,001
|
12,5
|
3 |
2
|
|
|
14
|
SMART | |
0,001
|
25 | 4 |
2
|
|
|
15
|
ADVANCED IP67 |
0,001
|
12,5
|
3 |
2
|
||
|
16
|
ADVANCED IP67 |
0,001
|
25 | 4 |
2
|
||
|
17
|
ANALOG |
0,001
|
12,5
|
3 |
2
|
||
|
18
|
ANALOG |
0,001
|
25
|
4 |
2
|
||
|
19
|
ANALOG | |
0,001
|
12,5
|
3 |
2
|
|
|
20
|
ANALOG NANO | |
0,0001
|
12,5
|
1,2 | 0,3 | |
|
21
|
ANALOG NANO | |
0,0001
|
25
|
1,6
|
0,3
|
|
|
22
|
NANO |
0,0001
|
12,5
|
1,2
|
0,3
|
||
|
23
|
NANO |
0,0001
|
25
|
1,6
|
0,3
|
||
|
24
|
NANO | |
0,0001
|
12,5
|
1,2
|
0,3
|
|
|
25
|
NANO | |
0,0001
|
25
|
1,6
|
0,3
|
|
|
26
|
MINI BASIC |
0,001
|
12,5
|
4
|
2
|
||
|
27
|
MINI IP67 |
0,001
|
12,5
|
4
|
2 | ||
| 50 |
LEVER RAISES DIAGRAM UP TO 25MM
|
||||||
