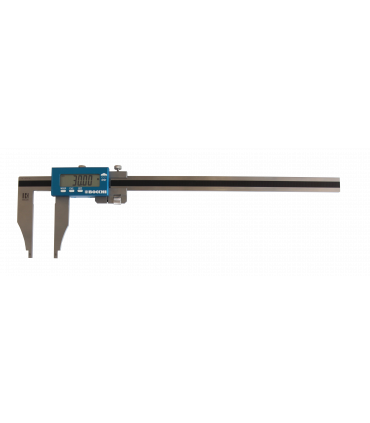

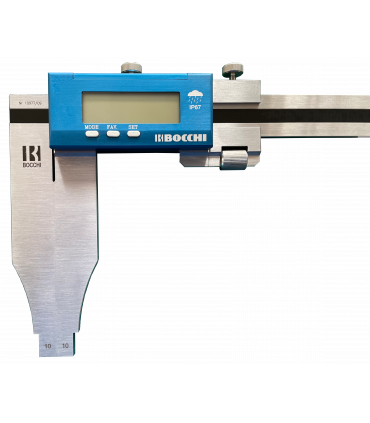

ART.0053 - DIGITAL CALIPER FOR EXTERNAL MEASUREMENTS
Digital caliper in hardened stainless steel.
5 figure liquid crystal display and minus sign.
State-of-the-art electronics.
mm/inch conversion.
Set to zero in any position.
RS232C output to printer port.
Micrometric adjustment screw.
Slider locking screw.
Battery powered.
Serial number.
Manufactured as per DIN 862.
Supplied in case.
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
ART.0053.01
Love0
Add to compare0
|
CODE
|
READING
(mm-inch)
|
RANGE
(mm-inch)
|
JAWS
(mm)
|
Ø INTERNAL JAWS
(mm)
|
SECTION
(mm)
|
WEIGHT
(kg.)
|
|
01
|
0,01-0,0005”
|
300-12”
|
90
|
10
|
19x4,5
|
0,550
|
|
06
|
0,01-0,0005”
|
600-20”
|
125
|
20
|
25x5,5
|
1,100 |
|
03
|
0,01-0,0005”
|
1000-40”
|
150
|
20
|
28x6,5
|
2,500
|
|
04
|
0,01-0,0005”
|
1500-60”
|
200
|
20
|
40x8
|
|
|
05
|
0,01-0,0005”
|
2000-80”
|
200
|
20
|
40x8
|
