ART.0034 - MONOBLOCK CALIPER
Monoblock caliper in hardened stainless steel.
Satin-chromed readout scale.
Etched, precision graduation, easy to read and long-lasting.
Raised slider for easy movement.
Slider locking screw with micrometric adjustment and lapped contact surfaces.
Slide stop at beam end.
Serial number.
Manufactured as per DIN 862.
Suppiled in case.
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
ART.0034.01
Love0
Add to compare0

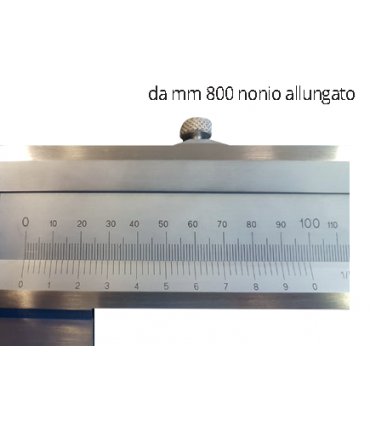

800 mm elongated vernier
|
CODE
|
READING
(mm)
|
RANGE
(mm)
|
JAWS
(mm)
|
Ø INTERNAL JAWS
(mm)
|
SECTION
(mm)
|
WEIGHT
(kg)
|
|
01
|
0.02
|
200
|
65 | 10 | 19x4 | 0,340 |
|
02
|
0.02
|
250
|
80 | 10 | 19x4 | 0,390 |
|
03
|
0.02
|
300
|
90 | 10 | 24x5 | 0,720 |
|
04
|
0.02
|
400
|
90 | 10 | 24x5 | 0,820 |
|
05
|
0.02
|
500
|
115 | 20 | 28,5x6 | 1,470 |
|
06
|
0.02
|
600
|
115 | 20 | 28,5x6 | 1,600 |
|
07
|
0.02
|
800
|
150 | 20 | 38,5x8 | 3,570 |
|
08
|
0.02
|
1000
|
150 | 20 | 38,5x8 | 4,000 |
|
09
|
0.02
|
1200
|
150 | 20 | 38,5x8 | 4,500 |
|
10
|
0.02
|
1500
|
150 | 20 | 38,5x8 | 5,280 |
|
11
|
0.02
|
2000
|
200 | 20 | 48x10,5 | 10,560 |
|
12
|
0.02
|
2500
|
300 | 20 | 48x10,5 | 14,140 |
|
13
|
0.02
|
3000
|
300 | 20 | 48x10,5 | 16,100 |
