Universal caliper for welding control, preparation angle 0 ° / 60 °, misalignment, excess of metal, welding throat, depth of surface and slot measurements.

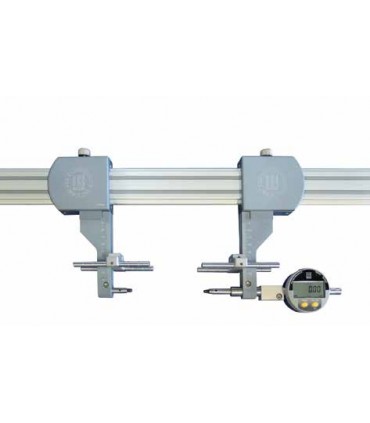

ART.2034 - RECTANGULAR PROFILE
Rectangular profile 40x20 mm made of special hardened alloy hot that ensures rigidity and lightness.
Anodization treatment which makes it scratch-resistant and corrosion-proof,with hardness of 250-350 HV.
Sliding guides made from 6 mm steel rods hardened and ground.
To ensure maximum accuracy in the control of large artifacts, the measurament is not carried out in an absolute manner,but in a comparative manner, for this reason the caliper has been equipped with two sliders both furniture, one of whitch is fitted with a special device that allows the connected to an indicator detemining the deviatons respect to the sample.
Special support and aligment systems, adjustable and chargover, allow to perform a measurement that ensures better repeatability and accuracy.
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
ART.2034.01
Love0
Add to compare0
Depending on the compliance of the pieces can be customized measuring ranges and lengths of the jaws.
|
CODE
|
RANGE
(mm)
|
RANGE FOR JAWS
(mm)
|
WEIGHT (Kg) |
|
2034.01
|
500 | 85 | 3,200 |
| 2034.02 | 1100 | 85 | 3,300 |
| 2034.03 | 1300 | 85 | 3,400 |
| 2034.04 | 1500 | 85 | 3,600 |
| 2034.05 | 1700 | 120 | 3,800 |
| 2034.06 | 2300 | 120 | 3,900 |
| 2034.07 | 2700 | 120 | 4,000 |
| 2034.08 | 3200 | 120 | 4200 |
| 2034.09 | 3800 | 120 | 4,600 |
|
2034.10
|
4300 | 120 | 4,700 |
