Straight edge bar in hardened stainless steel for lengthening the base on a depth bridge.

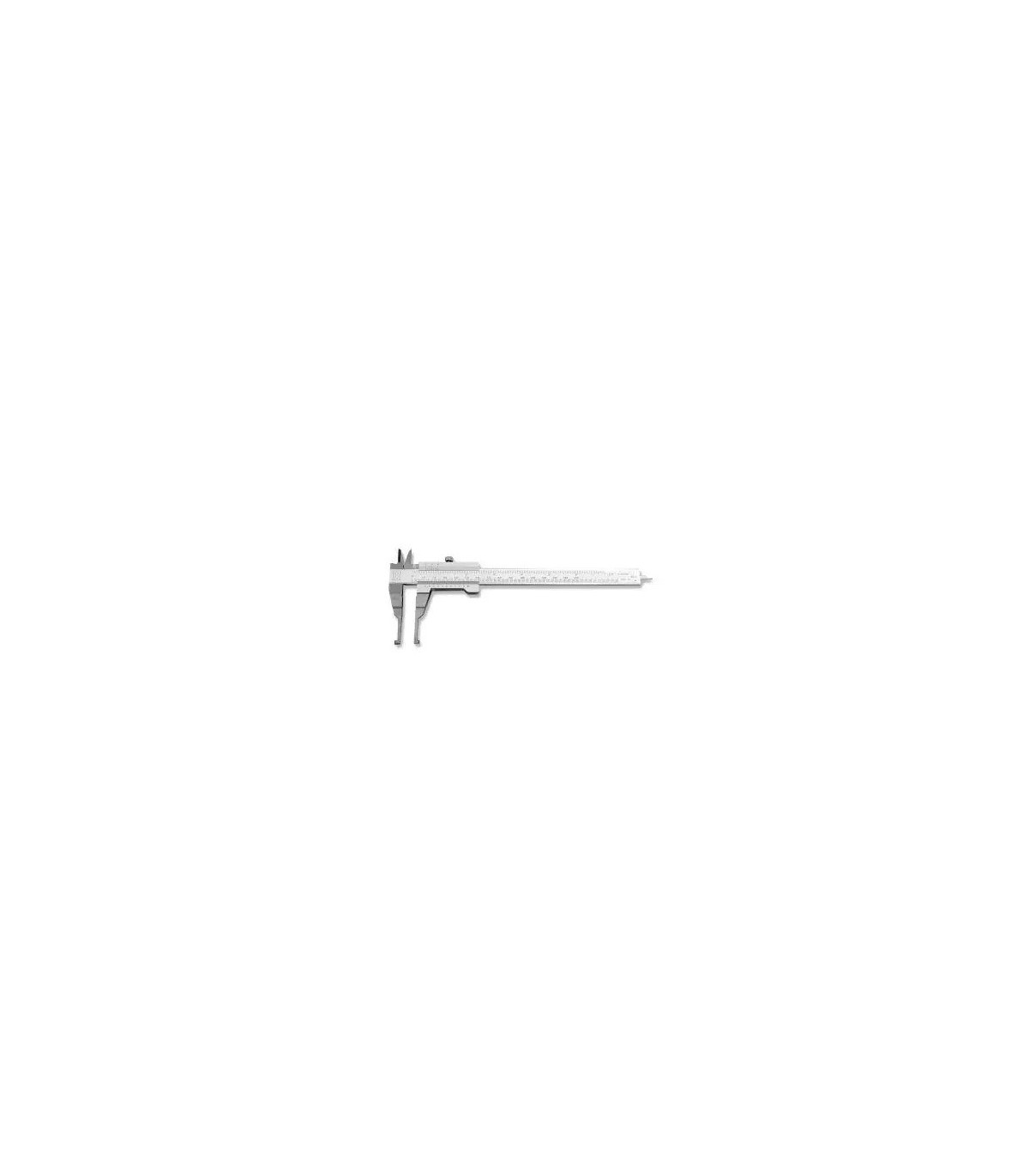

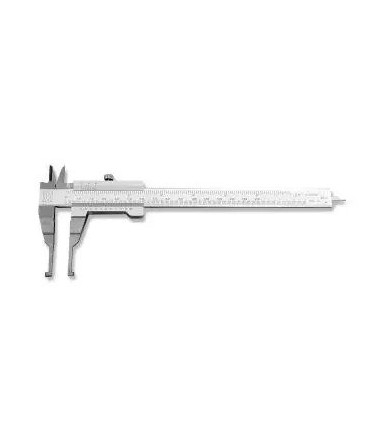

ART.0910 - CALIBER WITH MONOBLOC SLIDE
Caliber in hardened stainless steel with one-piece slide.
Reading of the chromed scale.
Precision graduation engraved, easy to read and long-lasting, slightly set back protected by two shoulders to guide the cursor.
Screw locking.Suitable for measuring grooves and internal seats.
Equipped with serial number.
Built according to DIN 862 standard.
Supplied in case.
Reading of the chromed scale.
Precision graduation engraved, easy to read and long-lasting, slightly set back protected by two shoulders to guide the cursor.
Screw locking.Suitable for measuring grooves and internal seats.
Equipped with serial number.
Built according to DIN 862 standard.
Supplied in case.
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
ART.0910
Love0
Add to compare0
|
CODE
|
RESOLUTION
(mm-inch)
|
RANGE
(mm)
|
A
(mm)
|
B
(mm)
|
C
(mm)
|
D
(mm)
|
E
(mm)
|
SECTION
(mm)
|
WEIGHT
(kg.)
|
|
01
|
0,05-1/128”
|
10-150
|
5
|
2,5
|
2,5
|
23
|
50
|
16x3
|
0,140
|
|
02
|
0,05-1/128”
|
20-150
|
10
|
4,0
|
2,5
|
23
|
50
|
16x3
|
0,140
|
|
03
|
0,05-1/128”
|
10-200
|
5
|
2,5
|
2,5
|
23
|
50
|
16x3
|
0,220
|
|
04
|
0,05-1/128”
|
20-200
|
10
|
4,0
|
2,5
|
23
|
50
|
16x3
|
0,220
|
