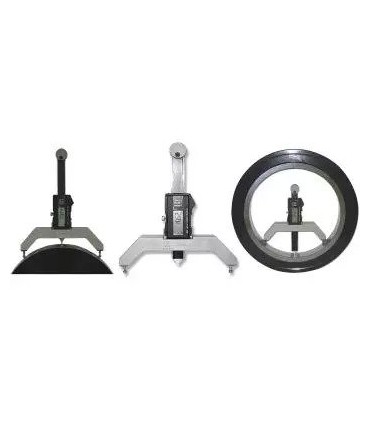

ART.0810 - DIGITAL RADIUS MEASURING INSTRUMENT
Digital radius measuring instrument.
Suitable for big inside and outside radius measurements.
The digital measuring head can be easily assembled on each of the three available bridges.
Output OPTO-RS232 to be connected directly to the PC through the corresponding cable.
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
ART.0810
Love0
Add to compare0
Depending on the radius to be measured, the digital display can be easily disassembled and reassembled on the most suitable base.
The digital display is equipped with an "OPTO-RS232" serial output to be connected directly to a PC via a special connection cable.
|
CODE
|
DESCRIPTION
|
|
01
|

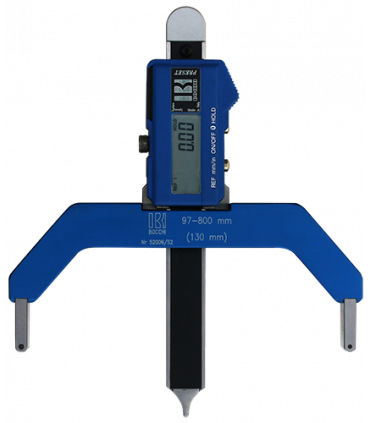

Base with 130 mm cord = radius capacity 97 – 800 mm
|
|
02
|
Base with 300 mm cord = radius capacity 470 – 2000 mm
|
|
03
|
Base with 500 mm cord = radius capacity 1270 – 10000 mm
|
|
04
|
Digital display
|
|
05
|
Digital display with direct reading
|
