Angle plate made from G25 perlitic cast iron with T-grooves. Compact and stabilised structure. Closely scraped work surfaces. Manufactured as per DIN 875/3.

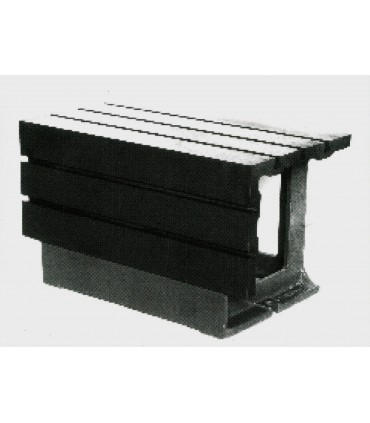

ART.0518 - BLOCK FOR RADIAL DRILLING MACHINE
Cube for radial drills in stabilized G26 pearlitic cast iron.
Properly ribbed to ensure strength.
Fine planed working surface with “T” grooves.
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
ART.0518
Love0
Add to compare0
|
CODE
|
SIZE
(mm)
|
No. T-SLOTS
(mm)
|
T-SLOT DIMENSIONS
(mm)
|
WEIGHT
(kg) |
|
01
|
700 x 700 x 350
|
3 + 2
|
16
|
300,000
|
|
02
|
600x600x300
|
3 + 2
|
16
|
230,000
|
|
03
|
550x420x510
|
3 + 2
|
16
|
180,000
|
|
04
|
660x450x450
|
3 + 2
|
16
|
200,000
|
|
05
|
750x550x450
|
3 + 2
|
16
|
250,000
|
|
06
|
1000 x 750 x 500
|
3 + 3
|
22
|
900,000
|
