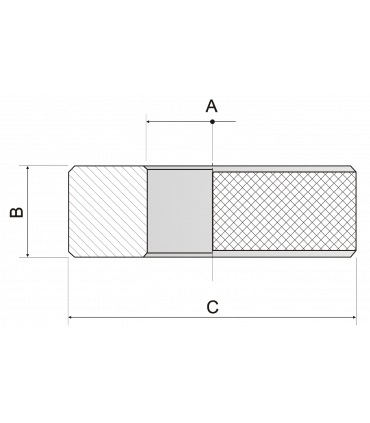

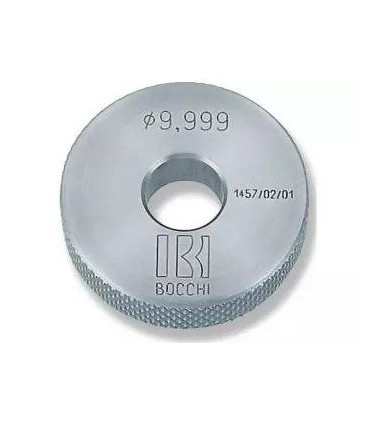

ART.0901 - RING GAUGES
“Go” type ring gauges in a special steel-chrome alloy.
Excellent resistance to wear, core-hardened, tempered and stabilised.
Available from Ø 3 to Ø 100 mm to tolerance H7.
Rings with measurement etched and suitable for calibration of comparison instruments are available upon requirement.
Excellent resistance to wear, core-hardened, tempered and stabilised.
Available from Ø 3 to Ø 100 mm to tolerance H7.
Rings with measurement etched and suitable for calibration of comparison instruments are available upon requirement.
