ART.0900 - PLUG GAUGES GO-NOGO

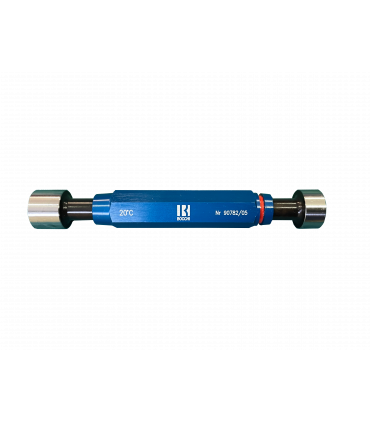

Cylindrical plug gauges “Go-No Go” in a steel-chrome alloy.
Excellent resistance to wear, core-hardened, tempered and stabilised.
Available from Ø 3 to Ø 100 mm to tolerance H7.
Can be supplied in different tolerance classifications upon requirement.
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
ART.0900
Love0
Add to compare0
|

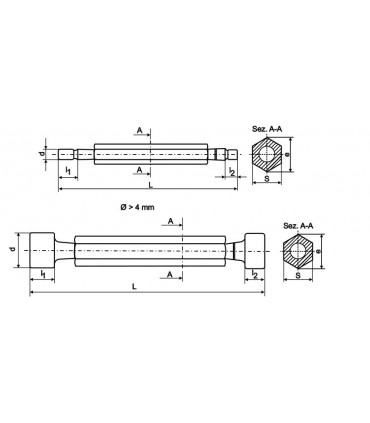

d (mm) |
l1 (mm) |
l2 (mm) |
L (mm) |
S (mm) |
e (mm) |
WEIGHT (Kg) |
| 1,5-3 | 6,5 | 4 | 58,5 | 5 | 5,5 | |
| 3-6 | 8 | 5 | 75 | 7 | 7,8 | |
| 6-10 | 10 | 6,5 | 87 | 9 | 10 | |
| 10-14 | 10 | 8 | 99 | 11 | 12,2 | |
| 14-18 | 12 | 8 | 110 | 14 | 15,5 | |
| 18-24 | 12 | 8 | 124 | 17 | 19 | |
| 24-33 | 16 | 10 | 130 | 17 | 19 | |
| 33-40 | 16 | 10 | 140 | 22 | 24,5 | |
| 40-50 | 20 | 12 | 154 | 24 | 27 | |
| 50-60 | 25 | 15 | 170 | 24 | 27 | |
| 60-70 | 25 | 15 | 170 | 24 | 27 | |
| 70-80 | 32 | 20 | 180 | 24 | 27 | |
| 80-90 | 32 | 20 | 180 | 24 | 27 | |
| 90-100 | 32 | 20 | 180 | 24 | 27 |
