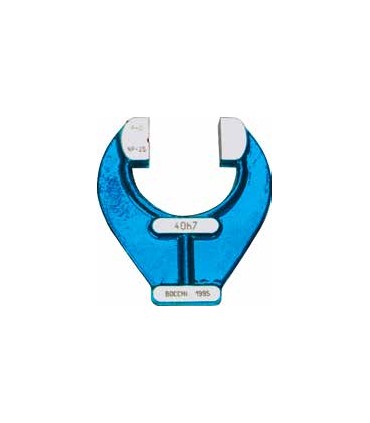

ART.0889 - PROGRESSIVE SNAP GAUGES GO-NOGO
“Go-No Go” snap gauges (Item 888) and progressive “Go-No Go” limit snap gauges (Item 889).
Rigid body in stabilised special steel.
Case-hardened and tempered calibration sectors.
Lapped surfaces.
Case-hardened and tempered calibration sectors.
Lapped surfaces.
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
ART.0889
Brand:
Love0
Add to compare0
|

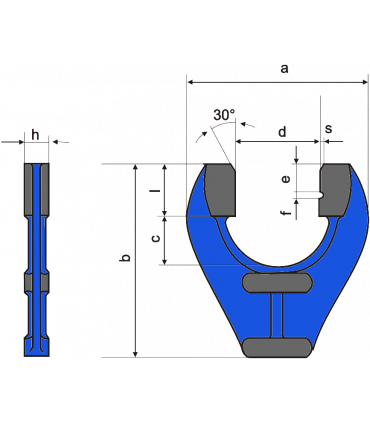

d
(mm)
|
a
(mm)
|
b
(mm)
|
c
(mm)
|
e
(mm)
|
f
(mm)
|
h
(mm)
|
l
(mm)
|
s
(mm)
|
WEIGHT
(Kg)
|
|
3-10
|
38
|
45
|
9 | 7 | 1,5 | 7 | 15 | 1 | |
|
10-18
|
51
|
60
|
13 | 8 | 1,5 | 8 | 18 | 1 | |
|
18-33
|
62
|
75
|
19 | 10 | 1,5 | 9 | 20 | 2 | |
|
33-40
|
75
|
85
|
24 | 12 | 1,5 | 10 | 22 | 2 | |
|
40-50
|
98
|
105
|
30 | 15 | 1,5 | 11 | 27 | 3 | |
|
50-70
|
122
|
122
|
40 | 18 | 2 | 13 | 30 | 3 | |
|
70-90
|
140
|
135
|
48 | 22 | 2 | 13 | 34 | 3 | |
|
90-100
|
165
|
155
|
55 | 22 | 2 | 14 | 38 | 3 |
