Cylindrical pins calibrated from Ø 0,5 to Ø 19,45 mm.
Manufacturing tolerance: ± 0,001 mm.
Roughness: < 0,025 Ra.
Roundness: < 0,0005 mm.
Hardness: 61-64 HRC.

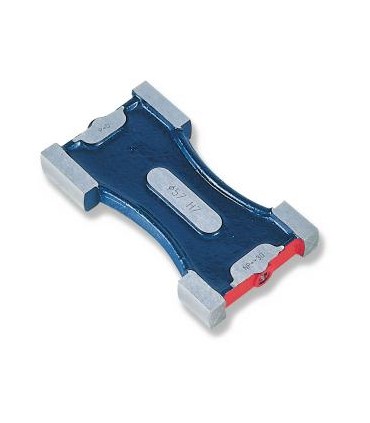

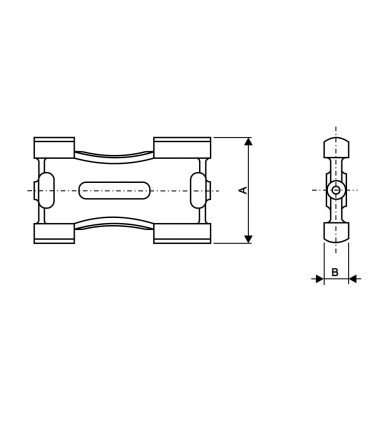

ART.0902 - FLAT PLUG GAUGES GO-NOGO
Flat plug gauges “Go-No Go” (Item 902) and flat plug gauges in “Go-No Go” pairs (Item 903).
Rigid body in stabilised special steel.
The calibrating sections are case-hardened and tempered.
Rigid body in stabilised special steel.
The calibrating sections are case-hardened and tempered.
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
ART.0902
Love0
Add to compare0
20 other products in the same category:
Long gauge blocks. Set of 8 pieces long gauge blocks in non-deformable high quality steel. Supplied in case. Serial number on each block. Manufactured as per DIN 861. Set composition: 125 – 150 – 175 – 200 – 250 – 300...
“Go” type ring gauges in a special steel-chrome alloy.Excellent resistance to wear, core-hardened, tempered and stabilised.Available from Ø 3 to Ø 100 mm to tolerance H7.Rings with measurement etched and suitable for...
Composition of parallel gauge blocks in top-quality non-deformable steel.Supplied in case, serial number on each block.Manufactured as per DIN 861.Three different grades are available:
Gr. 0: suitable for metrology...
Carabide double ended snap gauges.
Rigid body in steel hardened and toughened duly marked GO-NOGO sizes.
Guaging jaw tips tungsten carabide.

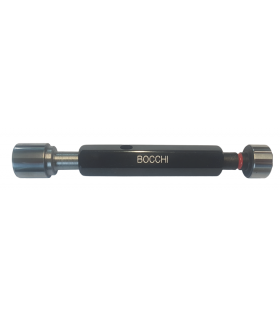

Cylindrical plug gauges “Go-No Go” in a steel-chrome alloy.Excellent resistance to wear, core-hardened, tempered and stabilised.Available from Ø 3 to Ø 100 mm to tolerance H7.Can be supplied in different tolerance...
