Scribing instrument with square beam, in satin chromed-steel for machinists.Slider fit with index line.Height adjustable point with hard metal tip.Base with casehardened and hardened steel sliding support.Etched...

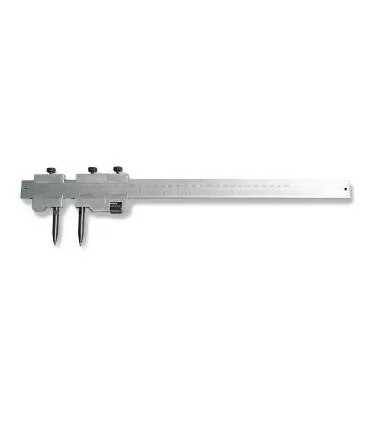

ART.0840 - MARKING CALIPER
Tracer compass in chromed steel.
Equipped with a micrometric screw and two cursors with tips with hard metal inserts.
Engraved, easy-to-read, long-lasting graduation.
Slider stop at the end of the shaft and serial number at the end of the scale.
Made according to DIN 862 standard.
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
ART.0840
Love0
Add to compare0
|
CODE
|
RESOLUTION
(mm)
|
USEFUL
(mm)
|
POINT LENGTH
(mm) |
SHAFT SECTION
(mm) |
WEIGHT
(kg) |
|
01
|
0.05
|
300
|
50
|
25 x 6
|
0.650
|
|
02
|
0.05
|
500
|
50
|
25 x 6
|
0.900
|
|
03
|
0.05
|
1000
|
50
|
30 x 6
|
2,100
|
|
04
|
0.05
|
1500
|
50
|
40 x 8
|
4,500
|
|
05
|
0.05
|
2000
|
50
|
40 x 8
|
5,700
|
|
06
|
0.05
|
3000
|
50
|
50 x 10
|
13,000
|
|
07
|
Widia spare bits (pair)
|
||||
|
08
|
Tips suitable for tracing model makers (pair)
|
||||
|
09
|
Tips suitable for internal or external measurements (pair)
|
||||
|
10
|
Tips mm. 100 (pair)
|
||||
|
11
|
Pencil holder (single)
|
