High quality/accuracy outside micrometer with discs. Casting painted arc heat-insulated. Sylvac digital electronic components complete with out-put OPTO RS232 (enable the direct connection to PC). ON/OFF function –...

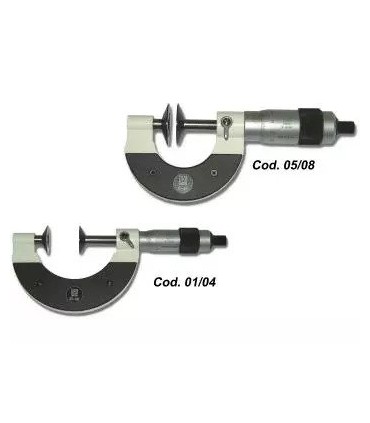

HIGH QUALITY/ACCURACY OUTSIDE MICROMETER WUTH DISCS 164
High quality/accuracy outside micrometer with discs. Casting painted arc heat-insulated. Thimble ( ø 19 mm x step 0,5 – ø 25 mm x step 1) chromed and etched by laser for a clear and long lasting. Friction on the thimble and locking lever. Screw completely hardened and ground with specific working systems to assure the max accuracy for a long time. Serial number. Manufactured as per DIN 863. Supplied in a box with key, setting rod not included. Upon requirement range over till the 400 mm.
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
ART.0164
Love0
Add to compare0
|
CODE
|
READING
(mm)
|
RANGE
(mm)
|
DISC Ø
(mm)
|
1 ROUND OF THE TIMBLE (mm)
|
|
01
|
0,01
|
0-25
|
25
|
1
|
|
02
|
0,01
|
25-50
|
25
|
1
|
|
03
|
0,01
|
50-75
|
25
|
1
|
|
04
|
0,01
|
75-100
|
25
|
1
|
|
05
|
0,01
|
0-25
|
30
|
1
|
|
06
|
0,01
|
25-50
|
30
|
1
|
|
07
|
0,01
|
50-75
|
30
|
1
|
|
08
|
0,01
|
75-100
|
30
|
1
|
|
09
|
SETTING GAUGE 25 mm
|
|||
|
10
|
SETTING GAUGE 50 mm
|
|||
|
11
|
SETTING GAUGE 75 mm
|
|||
