Universal mechanical micrometer complete with 7 interchangeable inserts. Digital version with reading 0,001mm upon requirement. Supplied in case.

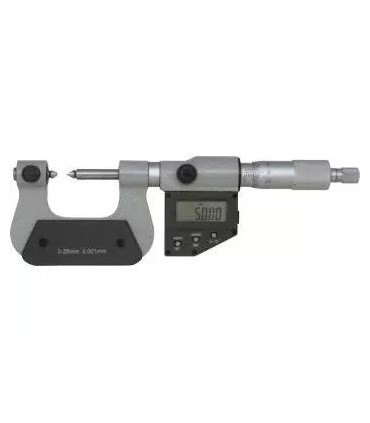

DIGITAL MICROMETER FOR THREADS MEASUREMENTS 4156

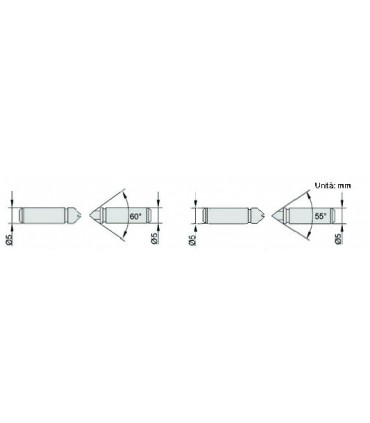

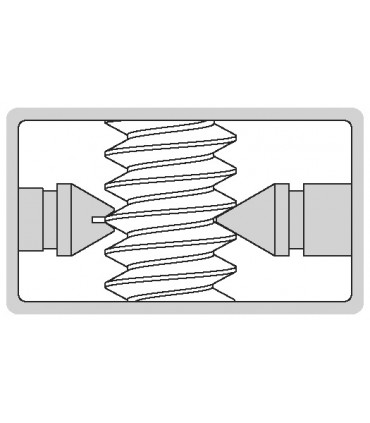

Digital micrometer for measurement of threads. Water and dust protection IP54. Output RS 232. Absolute and relative measurements. mm/inch conversion. Manufactured as per DIN 863. Supplied in case with ISO 60° metric contact insert, setting key and setting gauge of 60°.
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
ART.4156
Love0
Add to compare0
|
CODE
|
READING
(mm)
|
RANGE
(mm)
|

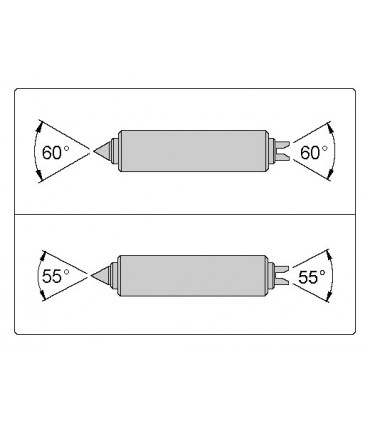

COMPLETE WITH METRIC CONTACT FOR THREADS
(mm)
|
|
01
|
0,001
|
0 – 25
|
0,4 – 0,5 / 0,6 – 0,9 / 1 – 1,75 / 2 – 3 / 3,5 – 5
|
|
02
|
0,001
|
25 – 50
|
0,6 – 0,8 / 1 – 1,25 / 1,5 – 2 / 2,5 – 3,5 / 4 – 6
|
|
03
|
0,001
|
50 – 75
|
1 – 1,75 / 2 – 3 / 3,5 – 5 / 5,5 – 7
|
|
04
|
0,001
|
75 – 100
|
1 – 1,75 / 2 – 3 / 3,5 – 5 / 5,5 – 7
|
|
05
|
SET 10 PZ. ISO 55° WITHWORT
|
60 - 48 / 48 - 40 / 40 - 32 / 32 - 24 / 24 - 18 / 18 - 14 / 14 - 10 / 10 - 7 / 7 - 4,5 / 4,5 - 3,5
|
|
