Adjusting snap gauge for outside diameters. Steel frame. Fine adjustment for the fixed contact. Range of moving contact 3 mm. Carbide contacts. Supplied without dial indicator.

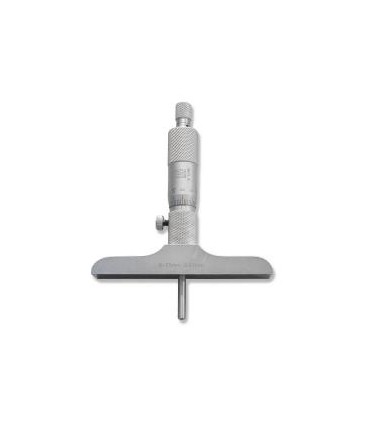

ART.0210 - DEPTH MEASUREMENT MICROMETER
Depth measurement micrometer with sturdy hardened and ground base.
Interchangeable rods enable that reading does not have to be reset when changing rods.
Serial number.
Manufactured as per DIN 863/1.
Supplied in case.
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
ART.0210
Love0
Add to compare0
|
CODE
|
READING
(mm)
|
RANGE
(mm)
|
BASE
(mm)
|
SCREW Ø X QUANTITY OF EXTENSIONS
(mm)
|
WEIGHT
(Kg)
|
|
01
|
0,001
|
0-25
|
100
|
4,5x1
|
0,300
|
|
02
|
0,001
|
0-50
|
100
|
4,5x2
|
0,330
|
|
03
|
0,001
|
0-100
|
100
|
4,5x4
|
0,380
|
|
04
|
0,001
|
0-150
|
100
|
4,5x6
|
0,480
|
|
05
|
0,001
|
0-200
|
100
|
4,5x8
|
0,590
|
|
06
|
0,001
|
0-300
|
100
|
4,5x12
|
