Micrometer for tubes. Specially designed for measuring the thickness of convex parts and tube walls. Body in steel. Serial number. Manufactured as per DIN 863. Supplied in case. Versions A/B/C/D/F upon equirement.

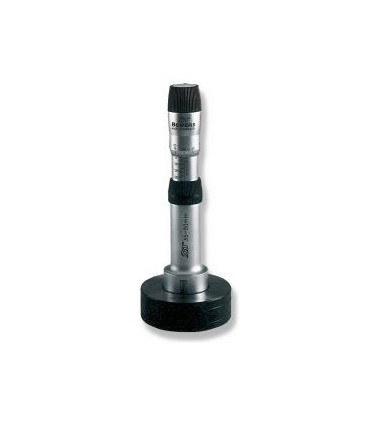

ART.0225 - THREE POINTS MICROMETER FOR INTERNAL MEASUREMENTS WITH VERNIER
Mechanical 3 points micrometer.
The instrument anvils are at the same level as the measuring head for measuring blind bores.
Personal judgement on the part of the operator is not required due to use of a torque limiter.
When the thimble rotates, the anvils are enlarged until they make contact with the bore walls.
The torque limiter ensures correct pressure so eliminating the requirement for operator judgement.
Manufactured to extremely strict tolerances.
Supplied in case with setting key and setting rings with “UKAS” certificates.
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
ART.0225
Love0
Add to compare0
|
CODE
|
READING
(mm)
|
RANGE
(mm)
|
DEPTH
(mm)
|
ACCURACY
(mm)
|
WEIGHT
(Kg)
|
|
01
|
0,005
|
6÷8
|
58
|
0,004
|
|
|
02
|
0,005
|
8÷10
|
58
|
0,004
|
|
|
03
|
0,005
|
10÷12,5
|
58
|
0,004
|
|
|
04
|
0,005
|
12,5÷16
|
62
|
0,004
|
|
|
05
|
0,005
|
16÷20
|
62
|
0,004
|
|
|
06
|
0,005
|
20÷25
|
66
|
0,004
|
|
|
07
|
0,005
|
25÷35
|
66
|
0,004
|
|
|
08
|
0,005
|
35÷50
|
80
|
0,004
|
|
|
09
|
0,005
|
50÷65
|
80
|
0,005
|
|
|
10
|
0,005
|
65÷80
|
80
|
0,005
|
|
|
11
|
0,005
|
80÷100
|
100
|
0,005
|
|
|
12
|
0,005
|
100÷125
|
115
|
0,006
|
|
|
13
|
0,005
|
125÷150
|
115
|
0,006
|
|
|
14
|
0,005
|
150÷175
|
115
|
0,007
|
|
|
15
|
0,005
|
175÷200
|
115
|
0,007
|
|
|
16
|
0,005
|
200÷225
|
118
|
0,008
|
|
|
17
|
0,005
|
225÷250
|
118
|
0,008
|
|
|
18
|
0,005
|
250÷275
|
118
|
0,009
|
|
|
19
|
0,005
|
275÷300
|
118
|
0,009
|
|
|
20
|
0,005
|
SET 6÷10
|
0,003
|
||
|
21
|
0,005
|
SET 10÷20
|
0,003
|
||
|
22
|
0.005
|
SET 20÷50
|
0,004
|
||
|
23
|
0.005
|
SET 50÷100
|
0,005
|
