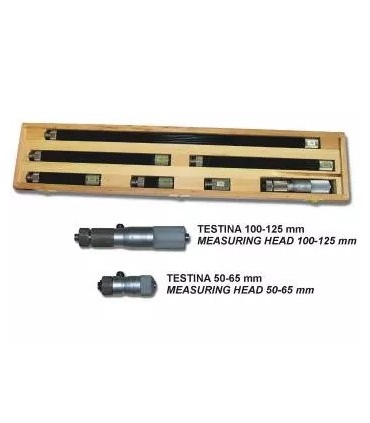

ART.0192 - HIGH QUALITY/ACCURACY INSIDE MICROMETER WITH EXTENSION RODS
High quality/accuracy inside micrometer with extension rods.
Extension rods and measuring head in hardened and ground stainless steel with specific working systems to assure the max accuracy and min bending.
Covered with heat-insulated material.
Measuring head (ø 19 mm) chromed and etched by laser for a clear and long lasting.
Locking screw.
Extension rods ø 16,5 mm with carbide contacts.
Serial number.
Manufactured as per DIN 863.
Supplied in a box.
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
ART.0192
Love0
Add to compare0
|
CODE
|
READING
(mm)
|
1 ROUND OF THE TIMBLE
(mm)
|
MEASURING HEAD
(mm)
|
RANGE
(mm)
|
EXTENSION
(mm)
|
|
01
|
0,01
|
0,05
|
50-65
|
50-150
|
15/25/50
|
|
02
|
0,01
|
0,05
|
50-65
|
50-450
|
15/25/50/100/200
|
|
03
|
0,01
|
0,05
|
50-65
|
50-850
|
15/25/50/100/200/400
|
|
04
|
0,01
|
0,05
|
100-125
|
100-1100
|
25/50/100/200/200/400
|
|
05
|
PROLUNGA 15 mm
|
||||
|
06
|
PROLUNGA 25 mm
|
||||
|
07
|
PROLUNGA 50 mm
|
||||
|
08
|
PROLUNGA 100 mm
|
||||
|
09
|
PROLUNGA 200 mm
|
||||
|
10
|
PROLUNGA 400 mm
|
||||
|
11
|
PROLUNGA 1000 mm x ø 30 mm
|
