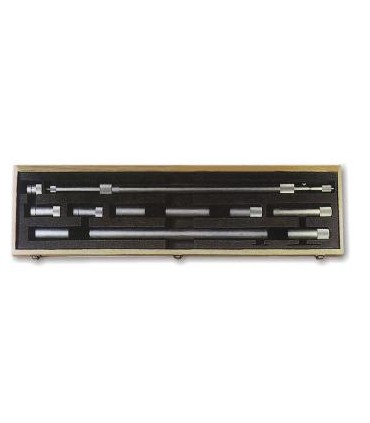

ART.4191 - MODULAR BEAM, INTERNAL MEASUREMENT MICROMETER FOR LARGE DIMENSIONS
Modular beam, internal measurement micrometer.
The set comprises an extension beam with micrometric head range 50 mm and extension beam sections.
Hardened and ground beams.
Serial number. Manufactured to precision:
± (7 + n + L/50) μm.
n = number of extensions.
L = total length of the modular beam in mm.
Supplied in case.
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
ART.4191
Love0
Add to compare0
|
CODE
|
READING
(mm)
|
RANGE
(mm)
|
EXTENSION
(mm)
|
BEAM Ø
(mm)
|
WEIGHT
(Kg)
|
|
01
|
0,01
|
1000-1050
|
-
|
28
|
|
|
02
|
0,01
|
1000-2000
|
50/100(2)/200/500
|
28
|
|
|
03
|
0,01
|
1000-3000
|
50/100(2)/200/500/1000
|
28
|
|
|
04
|
0,01
|
1000-4000
|
50/100(2)/200/500/1000(2)
|
28
|
|
|
05
|
0,01
|
1000-5000
|
50/100(2)/200/500/1000(3)
|
28
|
