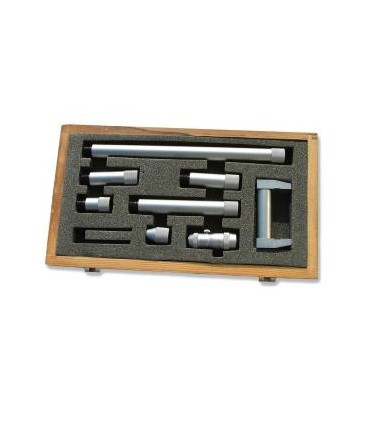

ART.0191 - MODULAR BEAM INTERNAL MEASUREMENT MICROMETER
Modular beam, internal measurement micrometer for large dimensions.
The set comprises a micrometric head range 13 mm and extension beam sections.
Hardened and ground beams.
Serial number.
Manufacatured to precision:
± (3+n+L/50) µm.
n= number of extensions.
L= total lenght of the modular beam in mm.
Supplied in case with the setting for the measuring head.
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
ART.0191
Love0
Add to compare0
|
CODE
|
RESOLUTION
(mm)
|
RANGE
(mm)
|
EXTENSIONS
(mm)
|
Ø ROD
(mm)
|
WEIGHT
(kg.)
|
|
01
|
0,01
|
50-300 |
13/25/50 (2) / 100
|
15,5
|
0,270
|
|
02
|
0,01
|
50-500
|
13/25/50 (2) / 100/200
|
15,5
|
0,430
|
|
03
|
0,01
|
50-1000
|
13/25/50/100(2)/100/150/200/300
|
15,5
|
0,780
|
|
04
|
0,01
|
50-1500
|
13/25/50/100 (2)/150/200(2)/300(2)
|
15,5
|
1,500
|
