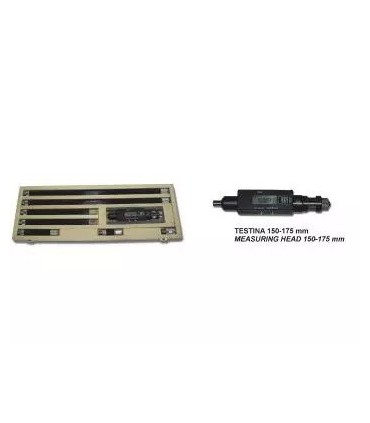

ART.0194 - HIGH QUALITY/ACCURACY DIGITAL INSIDE MICROMETER WITH EXTENSION RODS
High quality/accuracy digital inside micrometer with extension rods.
Extension rods and measuring head in hardened and ground stainless steel working systems to assure the max accuracy and min bending.
Covered with heat-insulated material.
Sylvac electronic components with output RS232 (enable the direct connection to PC).
ON/OFF function – “0” setting in any position – SET – HOLD (memory) – PRESET – TOL (tolerance selection) – possibility for reading 0,001 mm or 0,01 mm - mm/inch conversion.
Digital measuring head with adjustment.
Carbide contact ø 8 mm and not rotating.
Measuring head with 2 mm retractable contact (comparative system).
Serial number.
Manufactured as per DIN 863.
Supplied in a box.
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
ART.0194
Love0
Add to compare0
|
CODE
|
READING
(mm)
|
1 ROUND OF THE TIMBLE (mm)
|
MEASURING HEAD
(mm)
|
RANGE
(mm)
|
EXTENSION
(mm)
|
|
01
|
0,001 / 0,01
|
1
|
150-175
|
150-350
|
20/50/100
|
|
02
|
0,001 / 0,01
|
1
|
150-175
|
150-550
|
25/50/100/200
|
|
03
|
0,001 / 0,01
|
1
|
150-175
|
150-950
|
25/50/100/200/400
|
|
04
|
0,001 / 0,01
|
1
|
150-175
|
150-1550
|
25/50/100/200/400/400
|
|
05
|
EXTENSION 25 mm
|
||||
|
06
|
EXTENSION 50 mm
|
||||
|
07
|
EXTENSION 100 mm
|
||||
|
08
|
EXTENSION 200 mm
|
||||
|
09
|
EXTENSION 400 mm
|
||||
|
10
|
EXTENSION 1000 mm x ø 30 mm
|
||||
|
11
|
MASTER 150 mm
|
||||
|
12
|
CONNECTING CABLE TO PC
|
||||
|
13
|
BATTERY
|
||||
