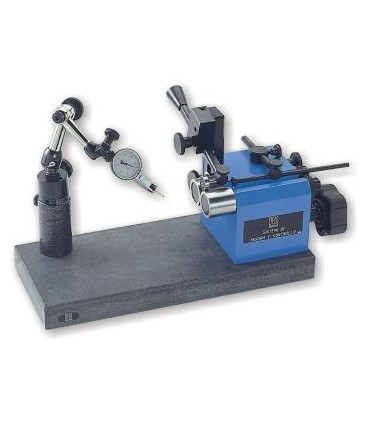

ART.2040 - INSTRUMENT FOR CONCENTRICITY AND PERPENDICULARITY CONTROL
Instrument for checking concentricity and perpendicularity.
Very robustly designed instrument suitable for checks to be carried out both in the workshop and in the metrological room.
Ease of setting up and ease of use during measurements.
Variable geometry of the drive rollers, adjustable pressure plate force, toothed belt drive, adjustable workpiece stop, 360° rotatable dial gauge holder, concentricity accuracy of 2 µm.
By mounting threaded rollers, the concentricity with respect to a thread can be checked.
