ART.0525 - INSPECTION BENCH FOR SHAFT CONCENTRICITY CHECKS

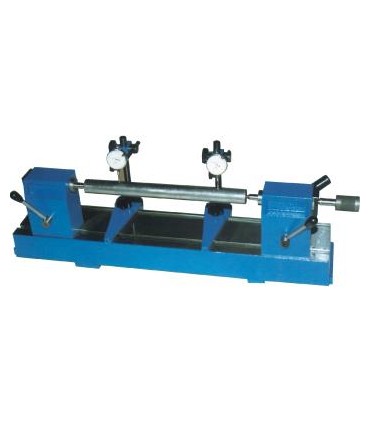

Inspection bench for shaft concentricity checks.
Made entirely from cast iron and face-hardened steel.
Comprises a base on which two sliding supports stand.
One support has a fixed point and the other a sliding point.
The sliding supports are easily locked into position with a grip eccentric.
The support with sliding point can be moved quickly using the lever or slowly using the adjustment knob (suitable for items weighing over 25 Kg.) .
