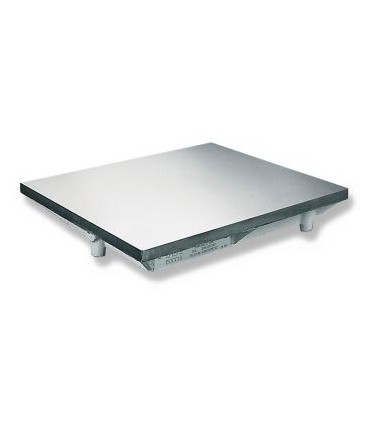

ART.0557 - SURFACE PLATE IN CAST IRON
Surface plate in G25 cast iron free from blowholes or structural flaws.
Seasoning of the surface plate is achieved naturally.
The perlitic surface plate is supported by rests and ribbing arranged to balance out tensions created when the plate is under load.
The edges are square to the surface and machine finished.
The surface plane is ground to comply with DIN 876/1 tolerances.
Seasoning of the surface plate is achieved naturally.
The perlitic surface plate is supported by rests and ribbing arranged to balance out tensions created when the plate is under load.
The edges are square to the surface and machine finished.
The surface plane is ground to comply with DIN 876/1 tolerances.
Item 557 has a closely scraped surface which complies to DIN 876/3 tolerances.
Templates are manufactured upon requrement.
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
ART.0557.01
Love0
Add to compare0
|
CODE
|
DIMENSIONS
(mm)
|
No. OF RESTS
|
WEIGHT
(kg) |
|
01
|
150 x 250
|
3
|
6,000
|
|
02
|
200 x 300
|
3
|
8,000
|
|
03
|
300 x 300
|
3
|
12,000
|
|
04
|
300 x 400
|
3
|
20,000
|
|
05
|
300 x 500
|
3
|
30,000
|
|
06
|
400 x 500
|
3
|
35,000
|
|
07
|
400 x 600
|
3
|
45,000
|
|
08
|
500 x 500
|
3
|
45,000
|
|
09
|
500 x 600
|
3
|
55,000
|
|
10
|
500 x 800
|
3
|
80,000
|
|
11
|
800 x 800
|
4
|
150,000
|
|
12
|
800 x 1000
|
4
|
190,000
|
|
13
|
800 x 1200
|
4
|
240,000
|
|
14
|
1000 x 1000
|
4
|
250,000
|
|
15
|
1000 x 1200
|
4
|
300,000
|
|
16
|
1000 x 1500
|
6
|
390,000
|
|
17
|
1000 x 2000
|
6
|
780,000
|
