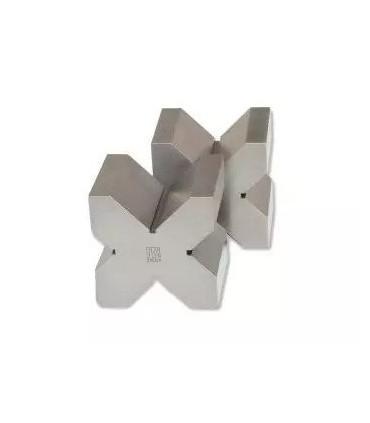

ART.0535 - "V" BLOCKS IN CAST IRON
V-blocks made from G25 perlitic cast iron.
Entirely ground. With four 90º “V”s.
Manufactured to tolerances of planarity and parallelism as per DIN 2274.
The cross parallels are supplied in pairs.
Size chart
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
How To Measure Your Bust
With your arms relaxed at your sides, measure around the fullest part of your chest.
How To Measure Your Waist
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Reference:
ART.0535
Brand:
Love0
Add to compare0
|
CODE
|
SIZE
(mm)
|
Ø FOR SHAFTS
(mm)
|
WEIGHT
(kg)
|
|
01
|
38 x 38 x 30
|
da 3 a 25
|
0,500
|
|
02
|
42 x 42 x 50
|
da 3 a 30
|
1,000
|
|
03
|
60 x 60 x 50
|
da 5 a 45
|
2,000
|
|
04
|
75 x 75 x 50
|
da 5 a 60
|
3,200
|
|
05
|
100 x 80 x 60
|
da 5 a 75
|
5,000
|
|
06
|
120 x 90 x 60
|
da 5 a 85
|
8,000
|
|
07
|
130 x 100 x 60
|
da 5 a 85
|
9,000
|
|
08
|
150 x 100 x 65
|
da 5 a 85
|
11,100
|
|
09
|
200 x 150 x 70
|
da 5 a 120
|
25,000
|
